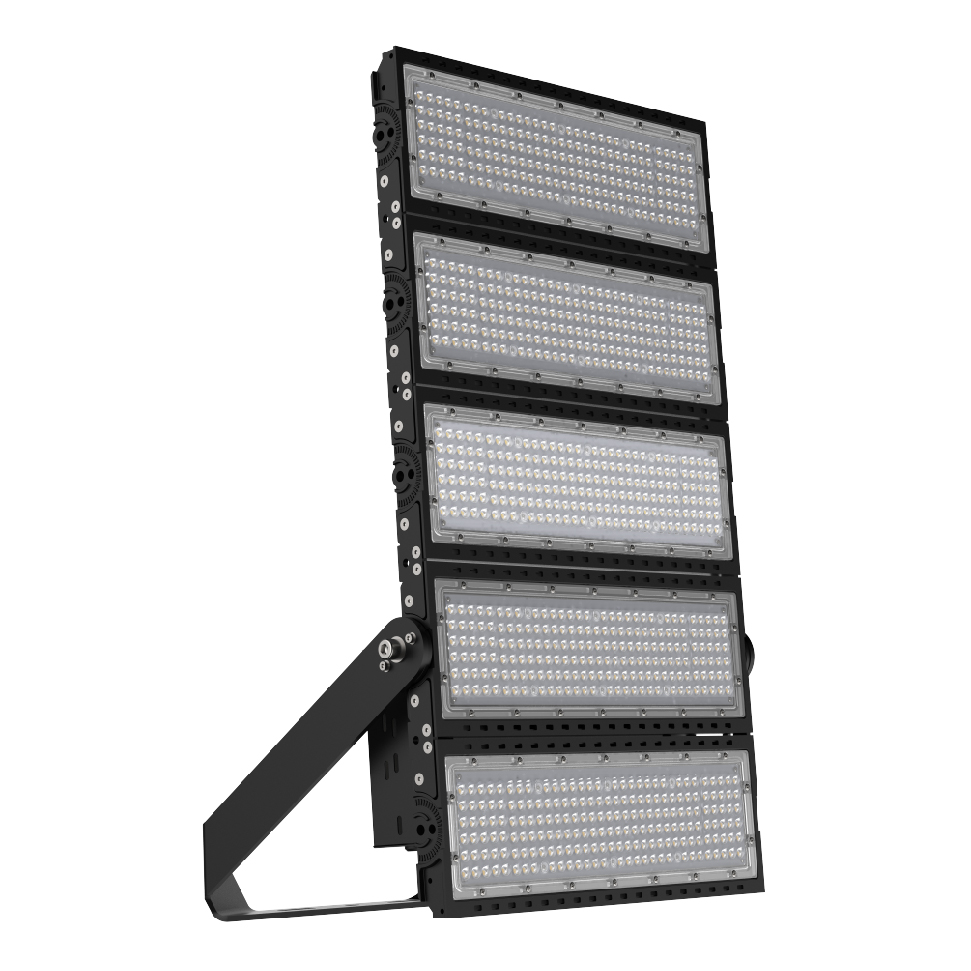

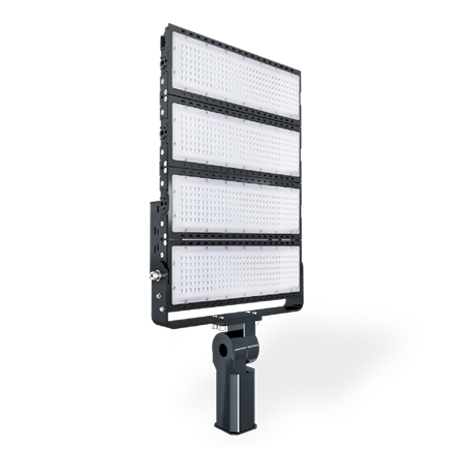

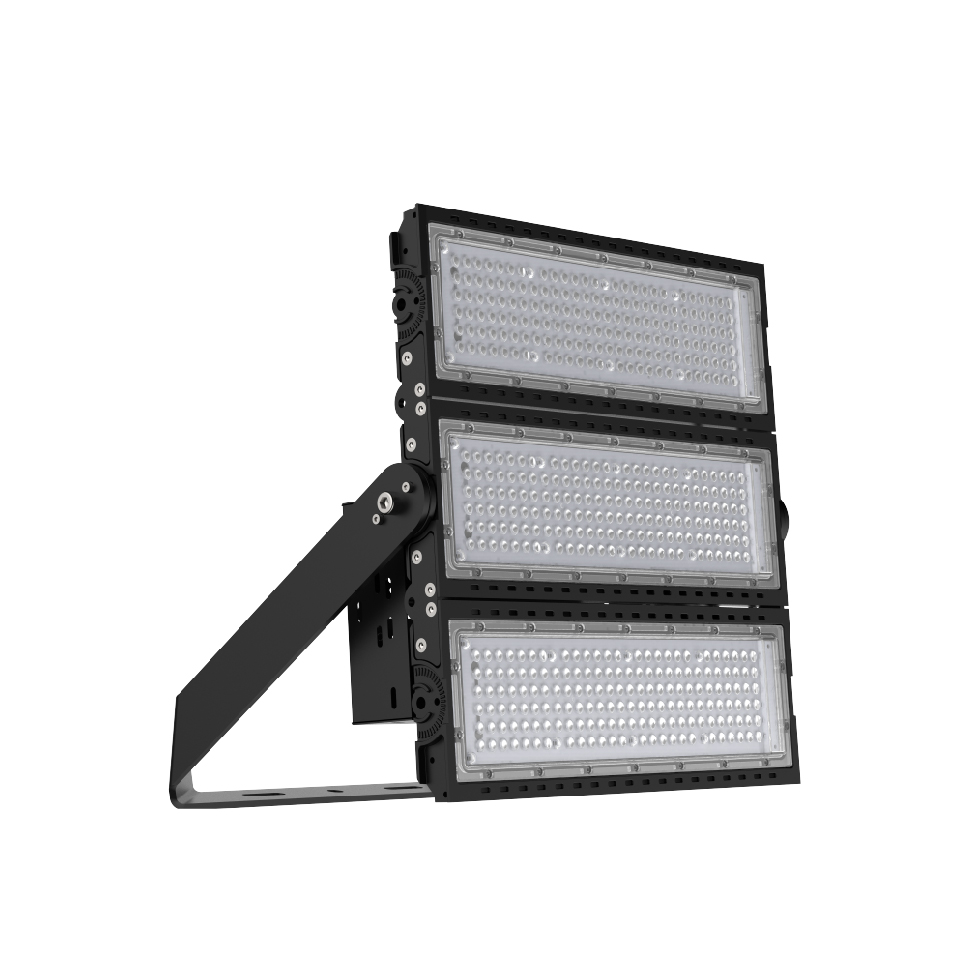

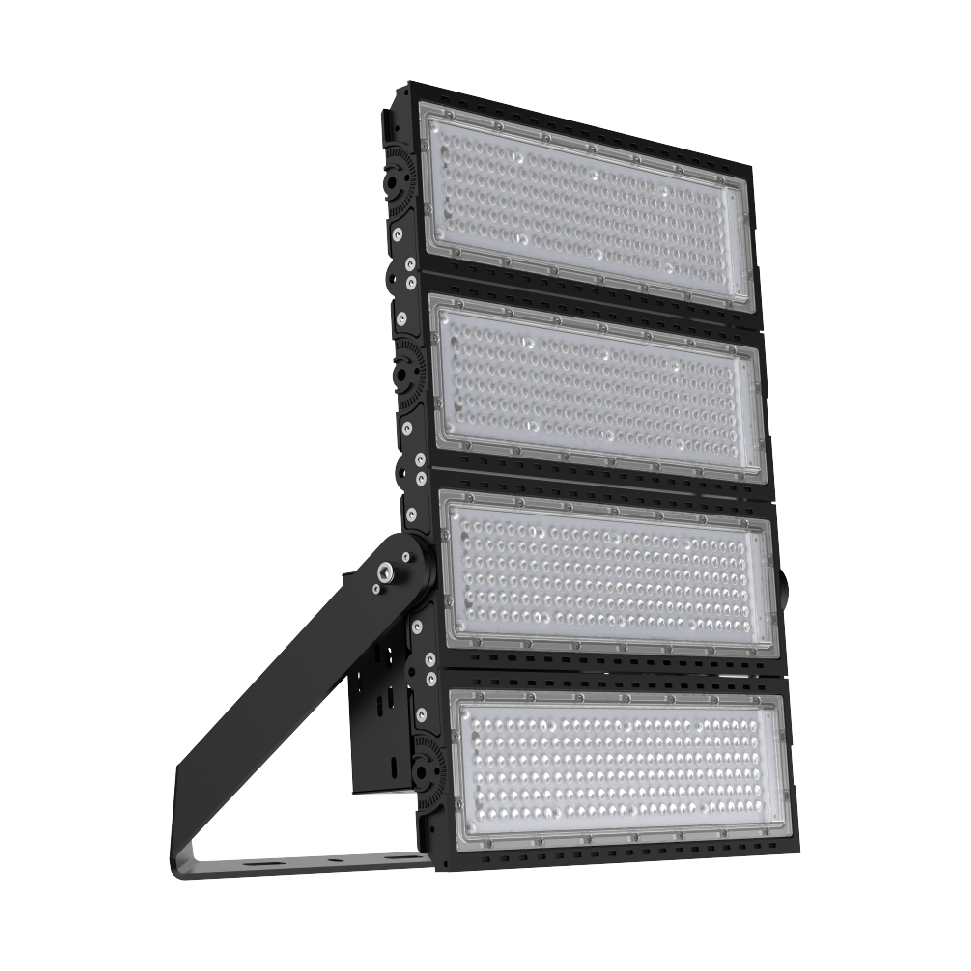

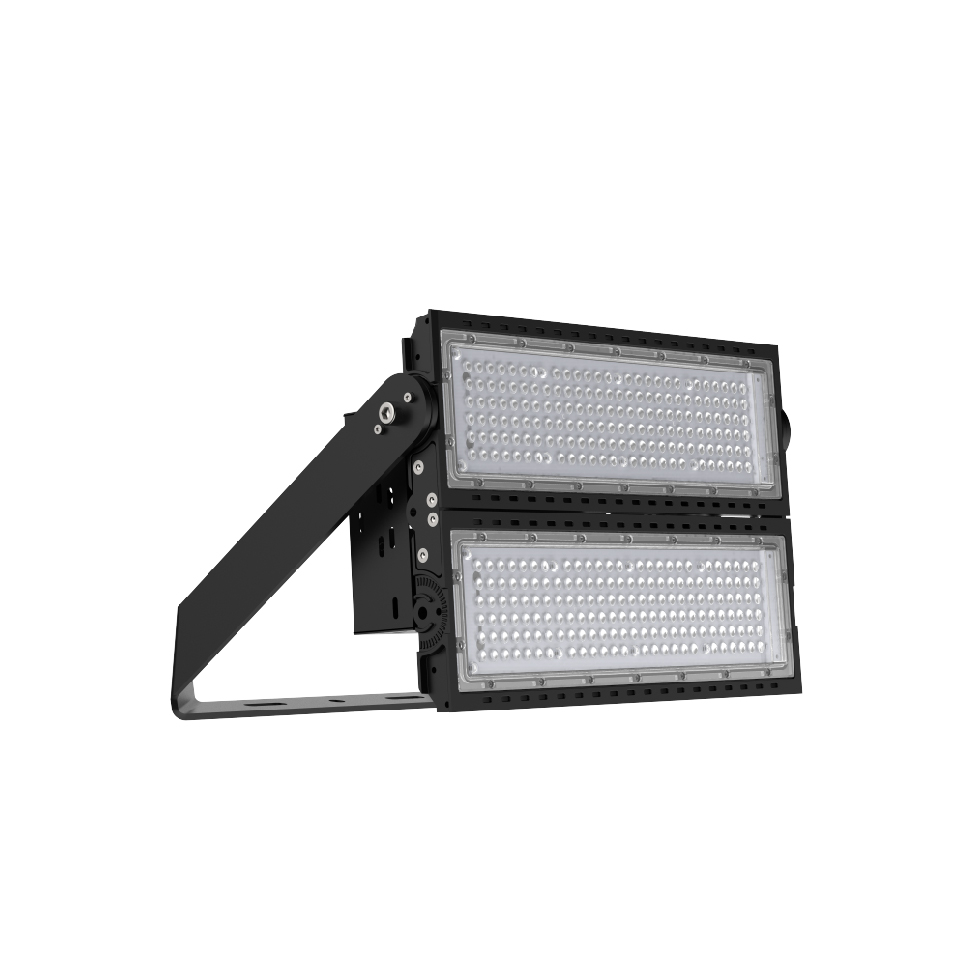

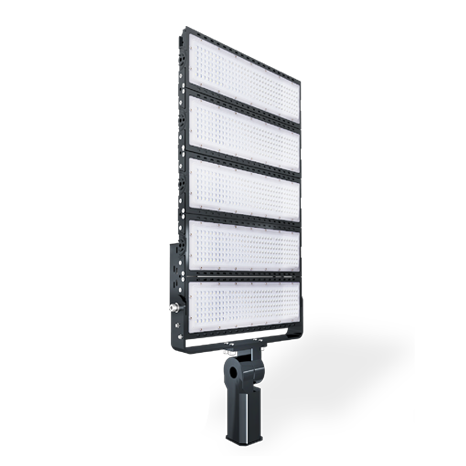

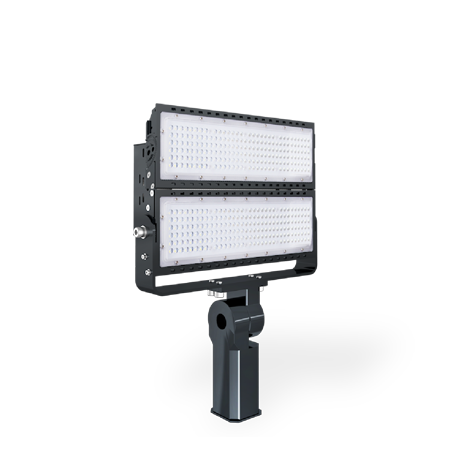

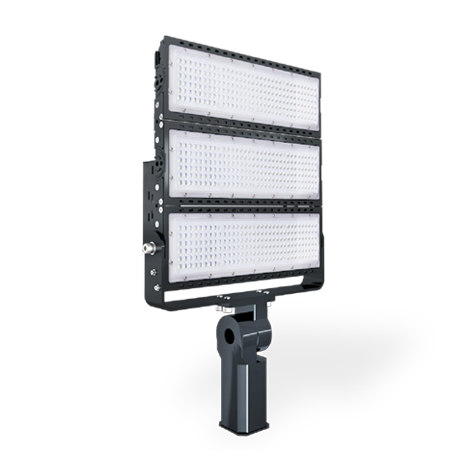

GD series

150LM W 100-277V AC 丨 277-480V AC - 50 60Hz 丨15° 30° 60° 90° T3VS T3M T4M 丨IK10 丨IP66

Input Voltage:100-277V AC  /  277-480V AC - 50/60Hz

Power factor:0.95

Power Efficiency:>0.93

Total Harmonic Distortion:<15%

System Power:GD245-240W      GD325-320W      GD485-480W      GD605-600W

Electrical Class Rating:I

Surge Protection:line-line 6KV , line-ground 10KV

Intelligent Control:0-10V dimmable / DALI / DMX



03
11
2331339669_5691aee0c1_o-1920x700
15311750997_75494f64fd_k-1920x700
21991594514_eb2820af9d_o-1920x700
43420244481_629ec94636_k-1920x700
jonathan-petersson-1920x700
1351755337_abd1fa87f7_o1920x700
1920x700

Product parameters

ProductModelPowerOutput voltagePower factorColor rendering indexBeam angleLuminous fluxData download
GD245-240W-14-250.pngGD245240W100-277VAC
277-480VAC
(50/60Hz)
≥0.95≥8015° / 30° / 60° / 90° / T3VS / T3M / T4M36000
GD325320W100-277VAC
277-480VAC
(50/60Hz)
≥0.95≥8015° / 30° / 60° / 90° / T3VS / T3M / T4M48000
GD485480W100-277VAC
277-480VAC
(50/60Hz)
≥0.95≥8015° / 30° / 60° / 90° / T3VS / T3M / T4M72000
GD605600W100-277VAC
277-480VAC
(50/60Hz)
≥0.95≥8015° / 30° / 60° / 90° / T3VS / T3M / T4M90000
