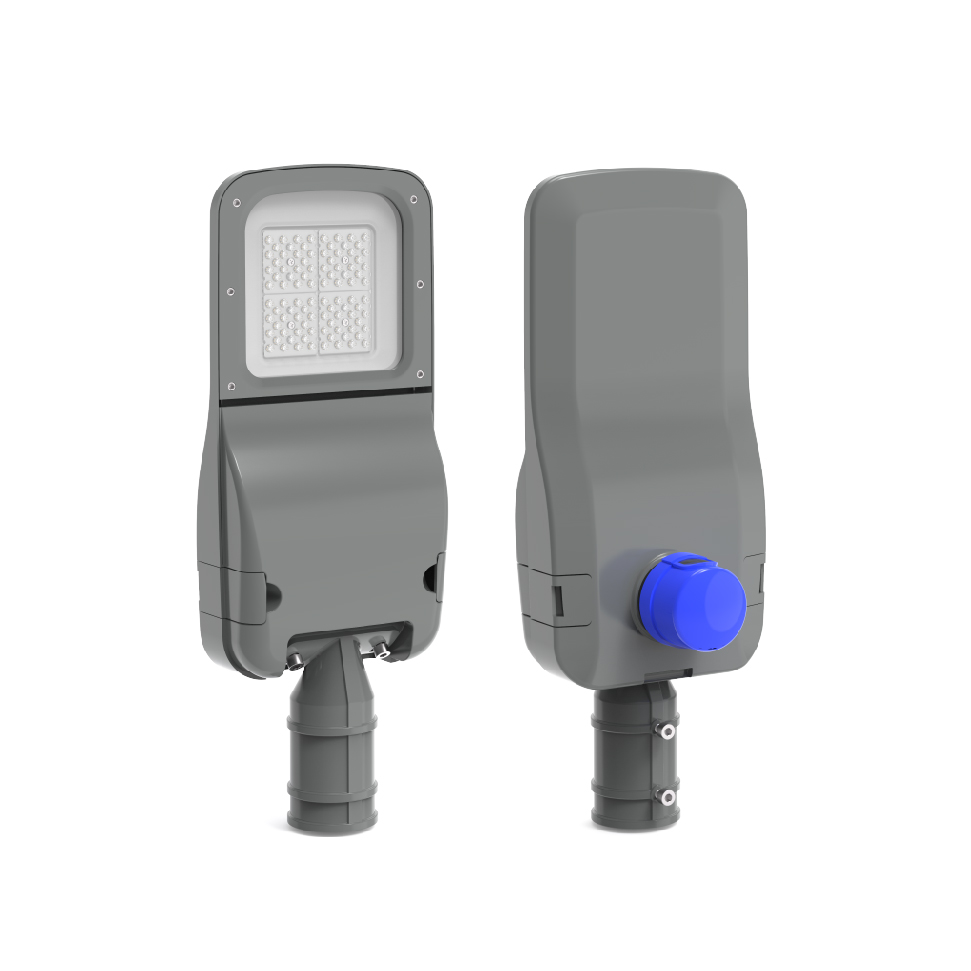

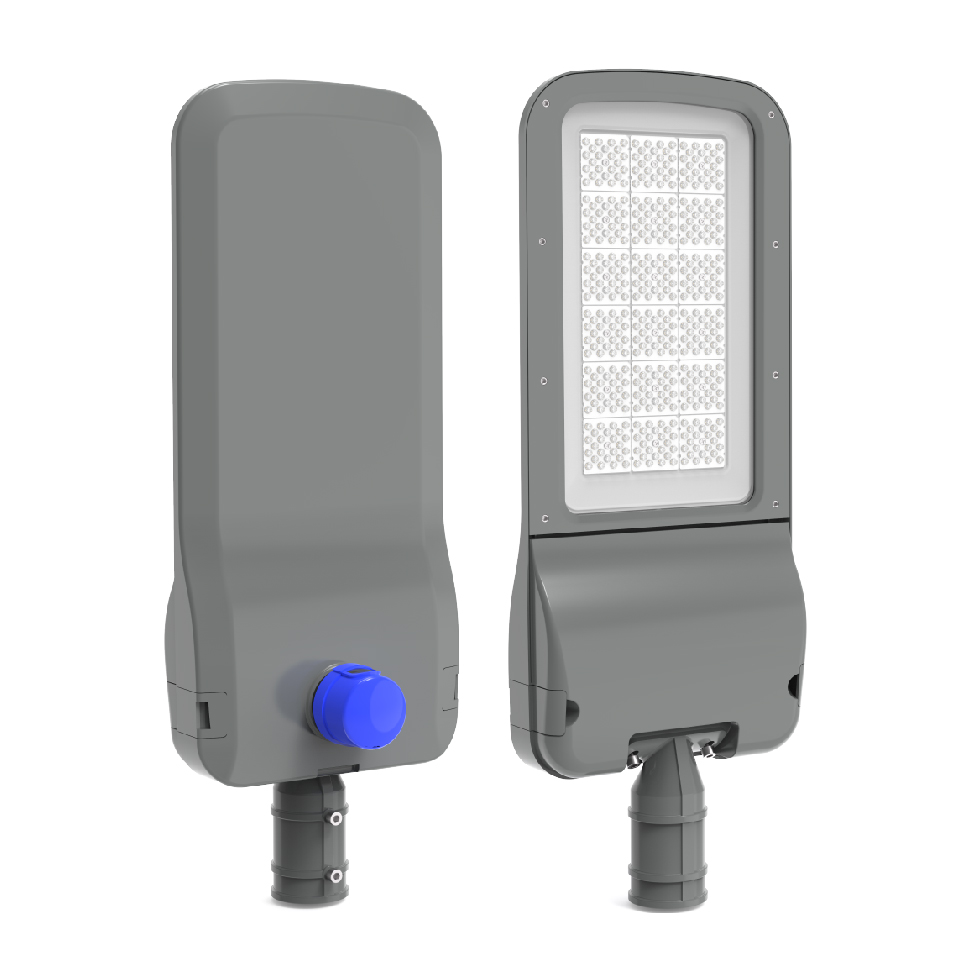

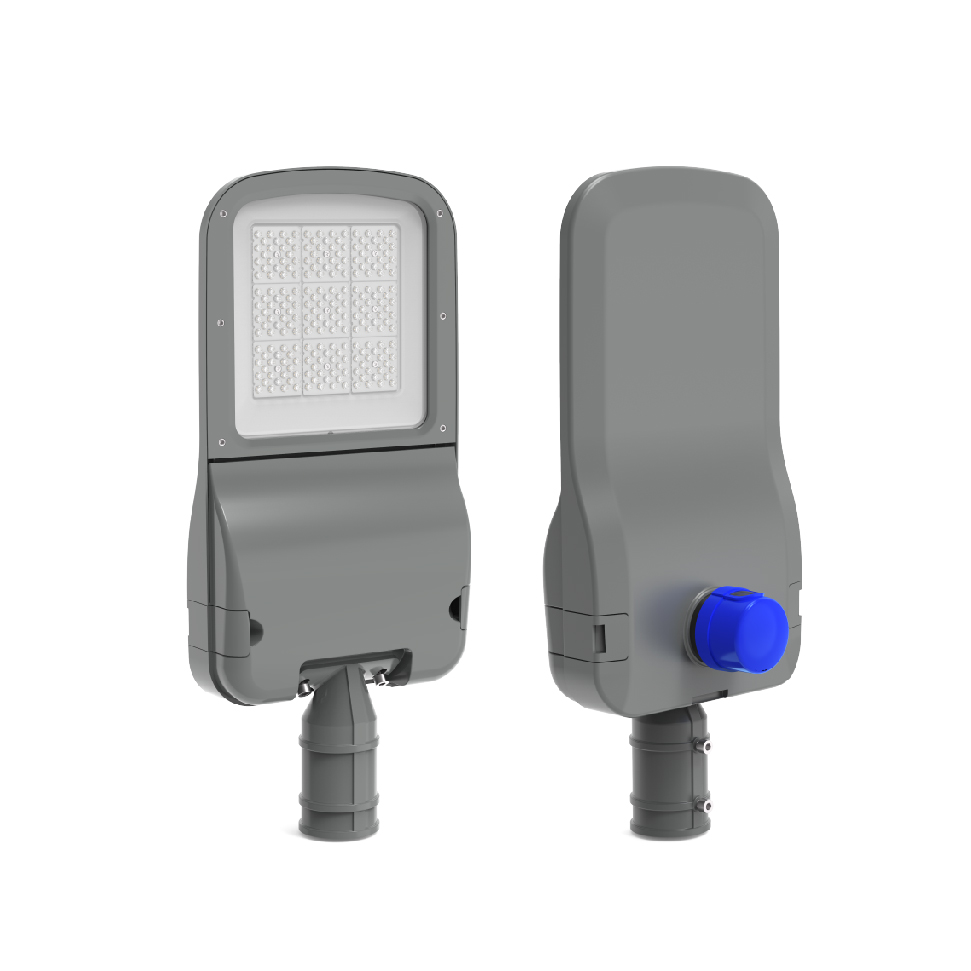

EK series

ProductModelPowerOutput voltagePower factorColor rendering indexBeam angleLuminous fluxData download 03230W100-277VAC ...

Rated power: 50W-240W

Rated voltage: 100-277VAC / 50/60Hz

Beam angle: 30°/60°/90°/120°/T2/T3

Luminous flux: 130LM / W

PF value: ≥0.95



03
11
海报-07
海报-06
EK-1920x800

Product parameters

ProductModelPowerOutput voltagePower factorColor rendering indexBeam angleLuminous fluxData download
EK052-250.pngEK05250W100-277VAC / 50/60Hz ≥0.95≥7030°/60°/90°/120°/T2/T36500

EK052-EK242 Specification.pdf

EK052-250.pngEK06260W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T37800

EK--Q(2).pdf

EK102-250.pngEN102100W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T313000
EK102-250.pngEK122120W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T315600
EK152-250.pngEK152150W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T319500
EK152-250.pngEK182180W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T323400
EK152-250.pngEK202200W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T326000
EK152-250.pngEK242240W100-277VAC / 50/60Hz≥0.95≥7030°/60°/90°/120°/T2/T331200
