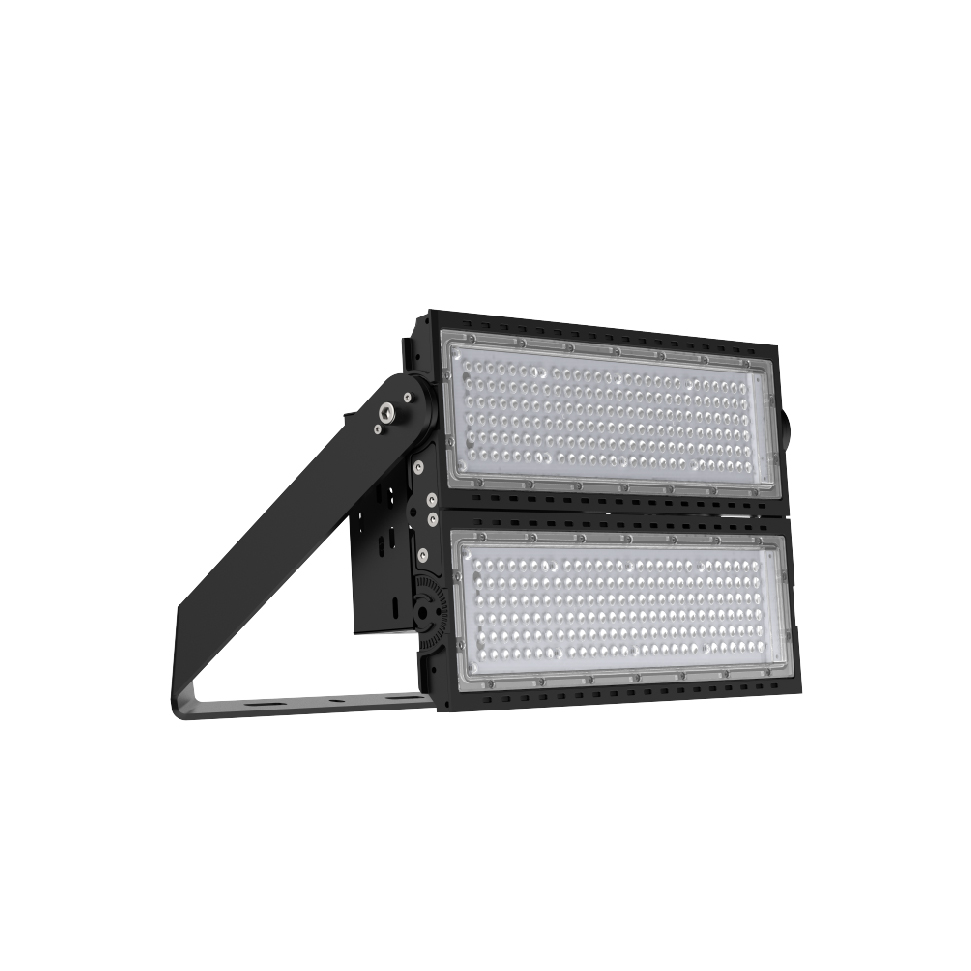

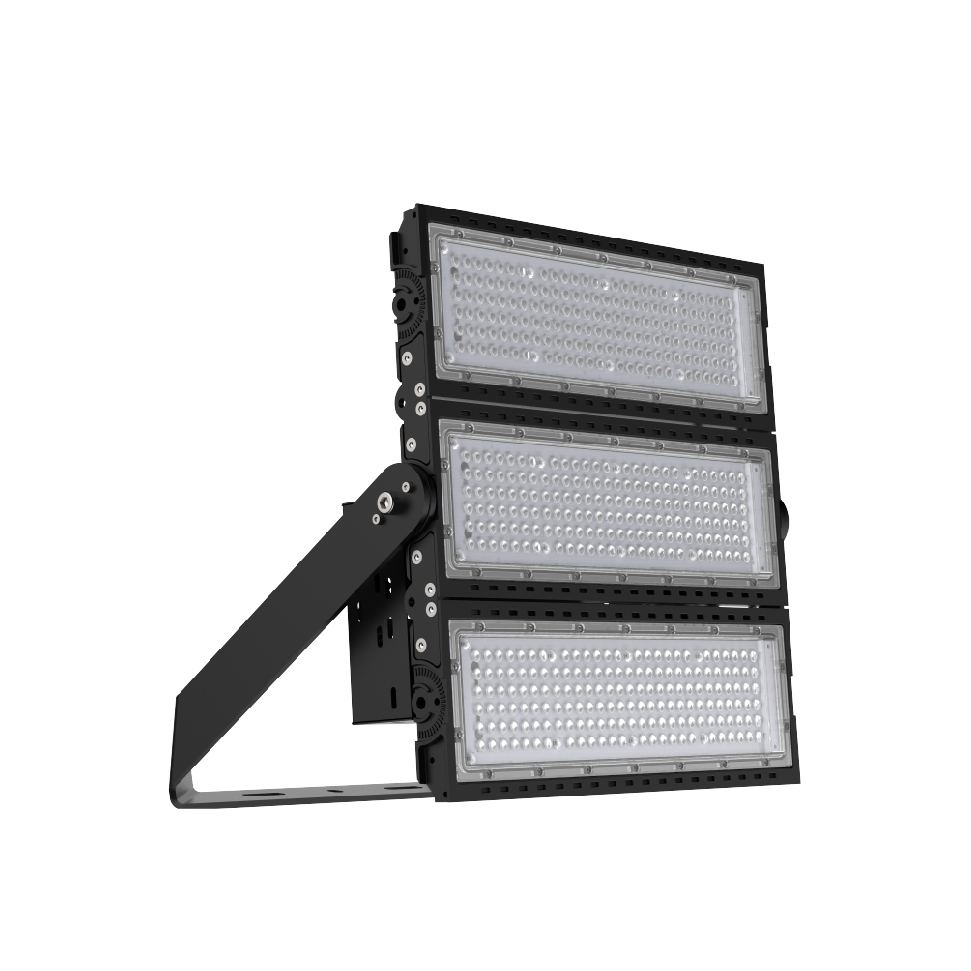

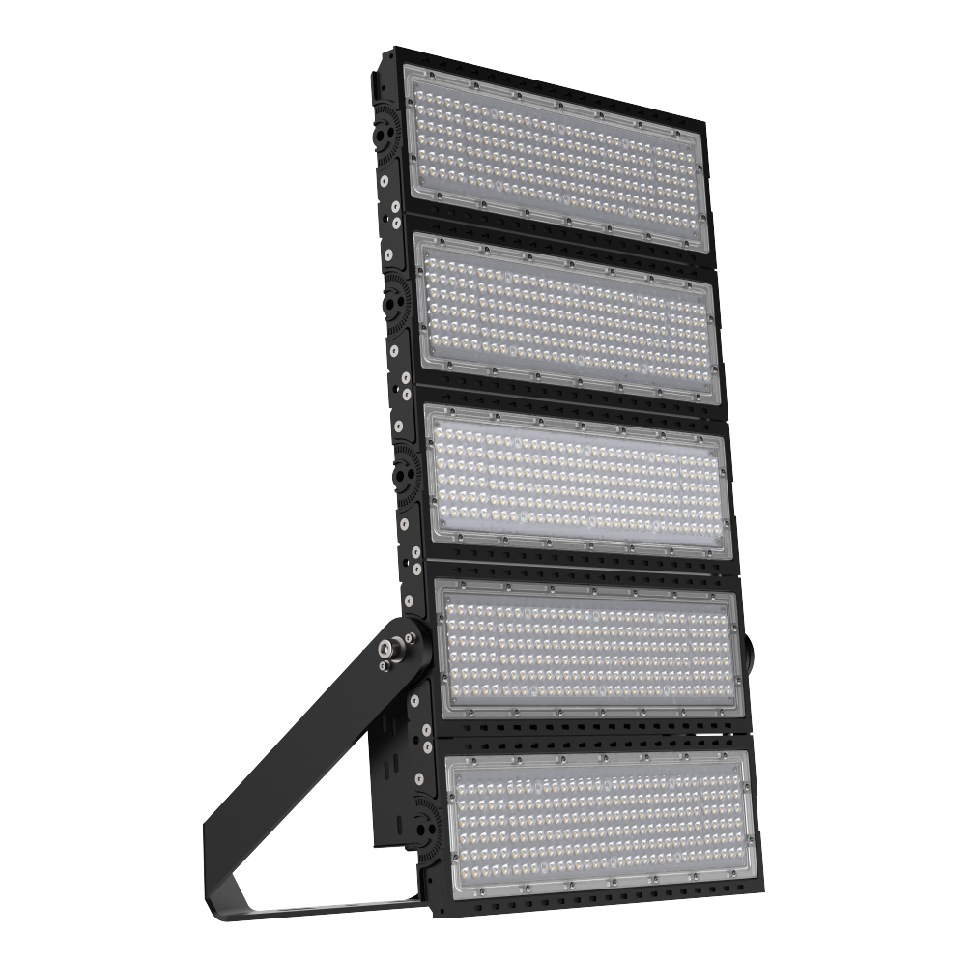

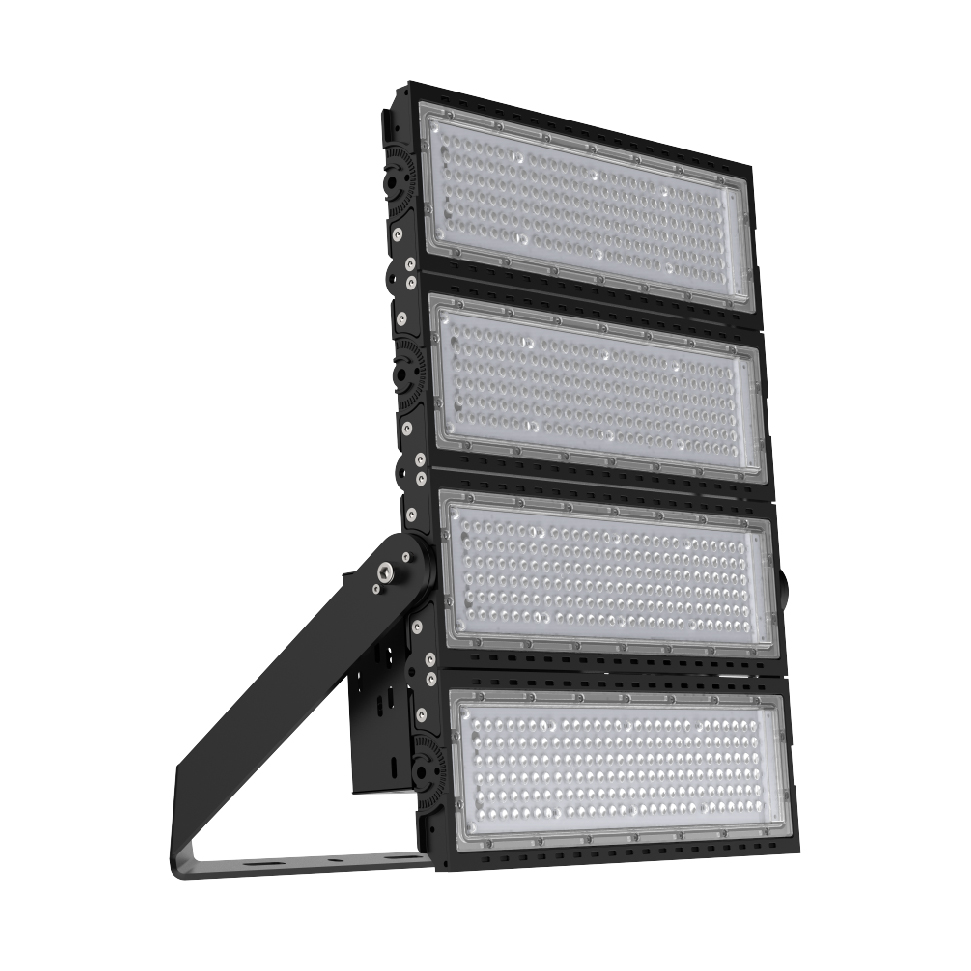

GD series

The GD series led floodlight are a high output modular, custom build luminaire for basketball court, football field, tennis court, high poles and squares.

Rated power: 240W/320W/480W/600W

Rated voltage: 100-277VAC / 50/60Hz

Luminous flux: 150M/W

Driver Brand: Sosen / Inventronic

Beam angle: 30°/60°/90°/T2S/T3S

PF value: ≥0.95

IP65 / IK10

Product parameters

Model	Power	Output voltage	Power factor	Color rendering index	Beam angle	Luminous flux
GD245	240W	100-277VAC 277-480VAC (50/60Hz)	≥0.95	≥80	30° / 60° / 90° / T2S / T3S	150LM/W
GD325	320W	100-277VAC 277-480VAC (50/60Hz)	≥0.95	≥80	30° / 60° / 90° / T2S / T3S	150LM/W
GD485	480W	100-277VAC 277-480VAC (50/60Hz)	≥0.95	≥80	30° / 60° / 90° / T2S / T3S	150LM/W
GD605	600W	100-277VAC 277-480VAC (50/60Hz)	≥0.95	≥80	30° / 60° / 90° / T2S / T3S	150LM/W
